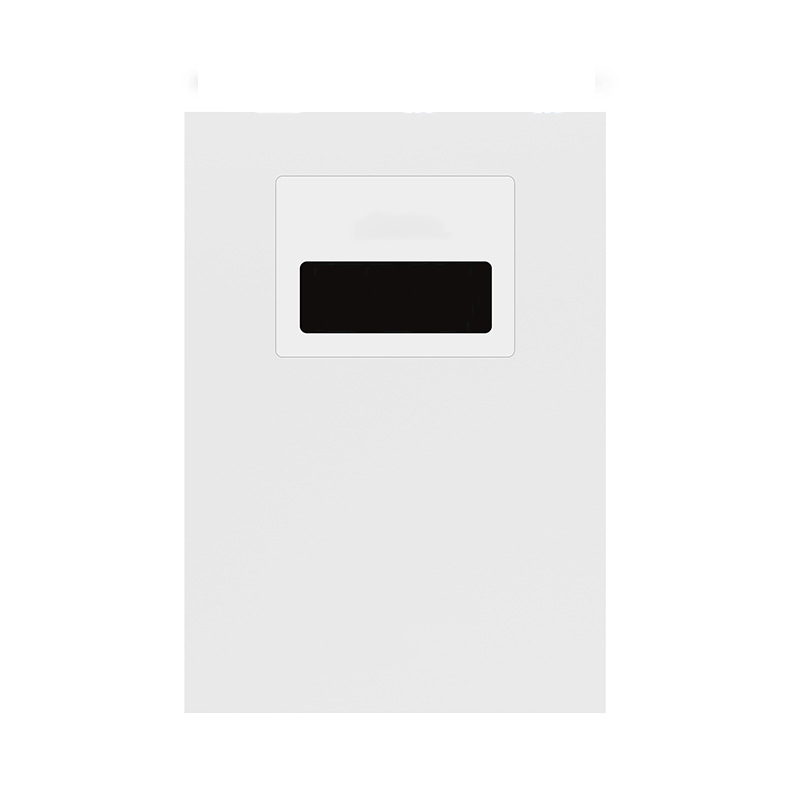

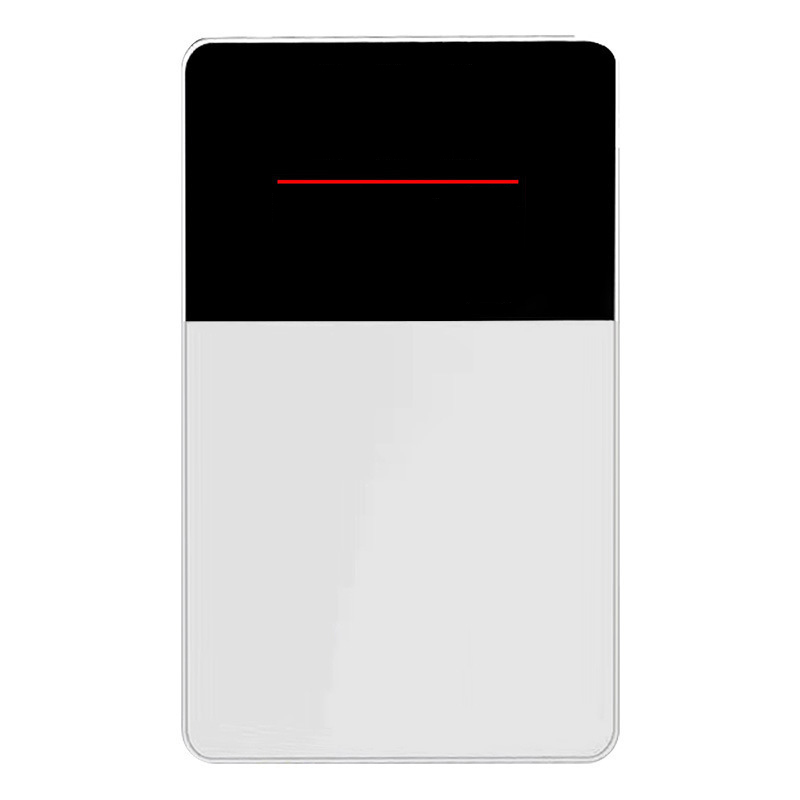

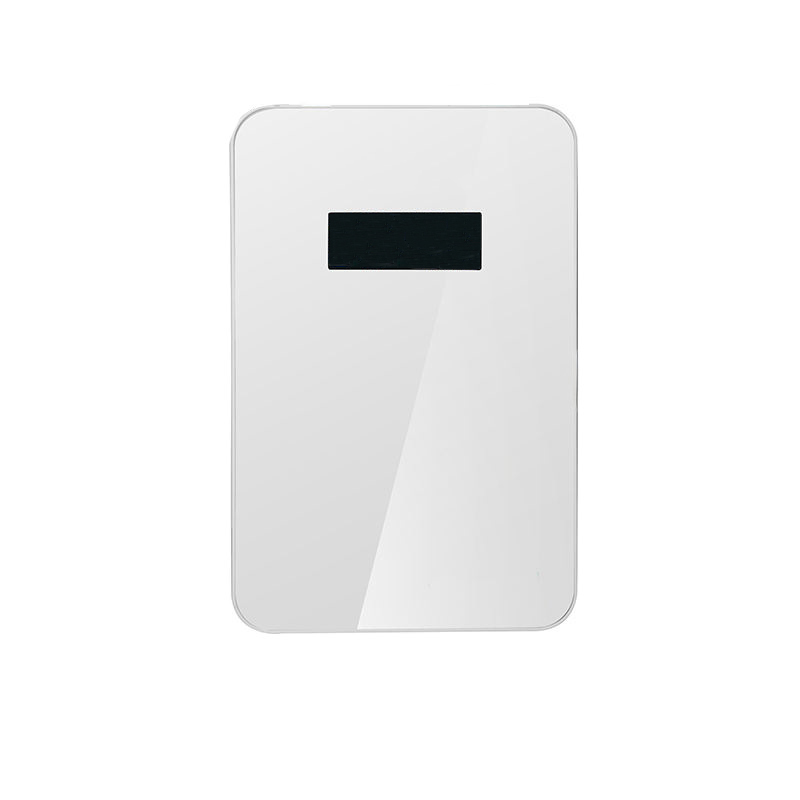

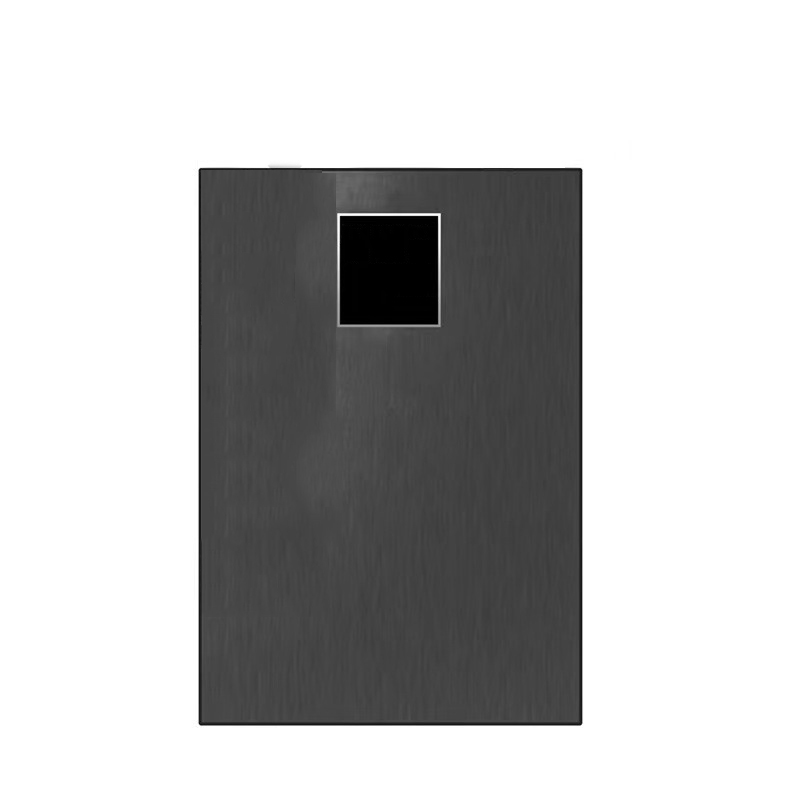

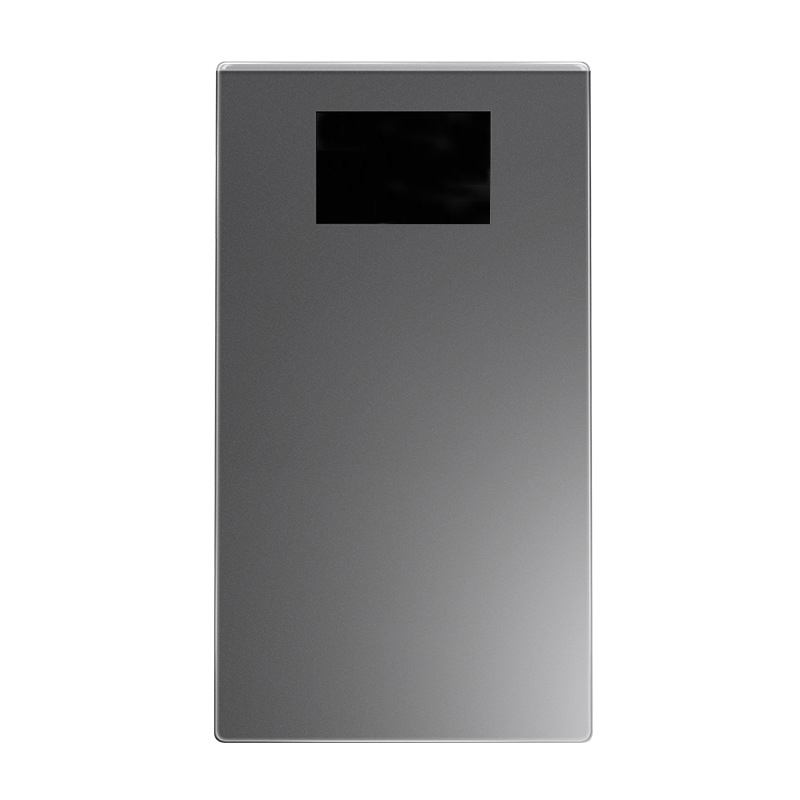

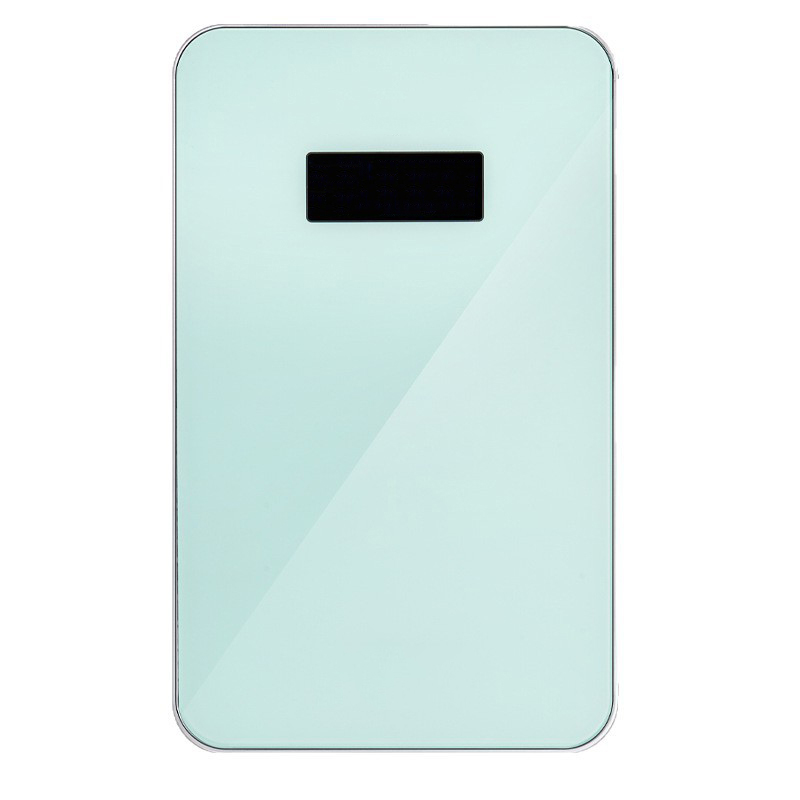

IP66 High-frequency inverter
- Art No：
- Size：
IP66 High-frequency inverter
◆ Protection level IP66
◆ Built in dual MPPT controller
◆ The maximum input PV currents are 21A/27A respectively
◆ Comes with AC dual output mode
◆ Automatic connection switching function for two independent AC input sources (mains and generator)
◆ Programmable power supply priority for photovoltaics, batteries, and power grids
◆ Battery Management System (BMS) with built-in communication port (RS485)
◆ Users can set the battery charging current and voltage
◆ Up to 9 units can run in parallel
◆ Support diesel generator input applications
Output voltage: 220/230/240VAC
Rated power: 6600W 48V/ 8600W 48V/ 10600W 48V

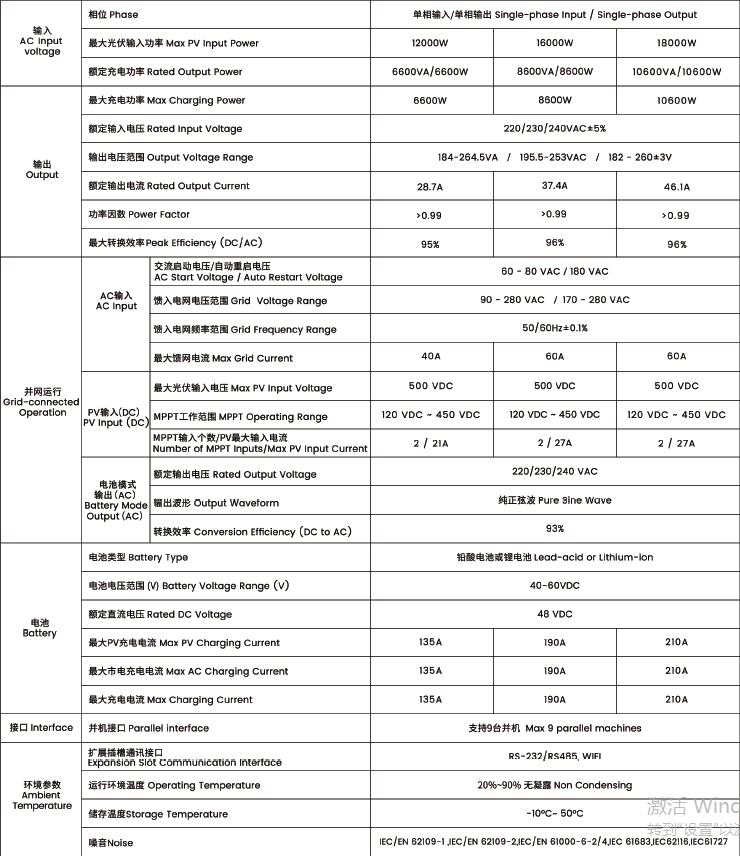

Technical parameters:
